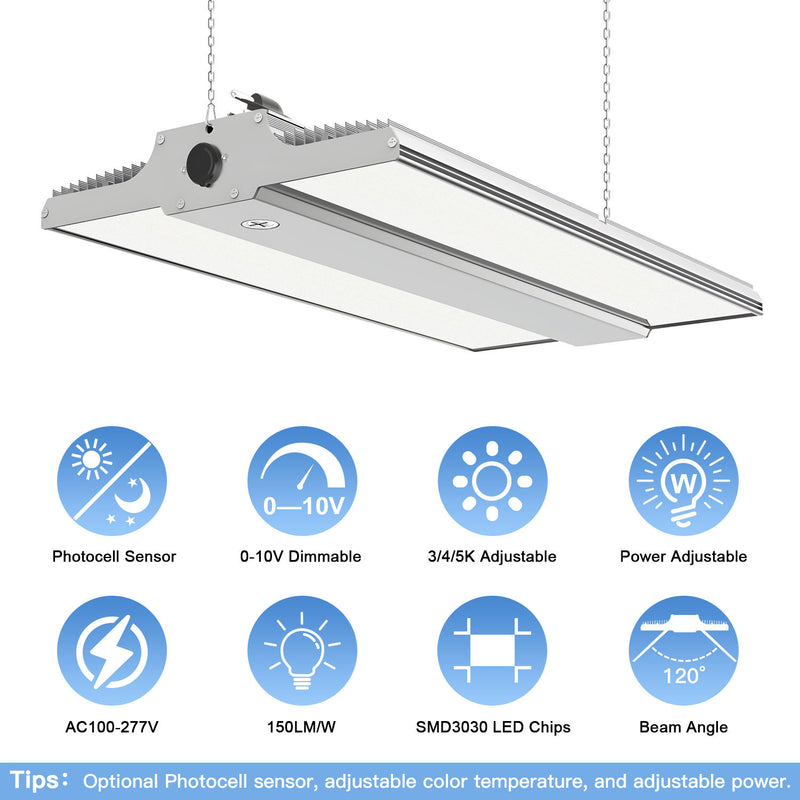

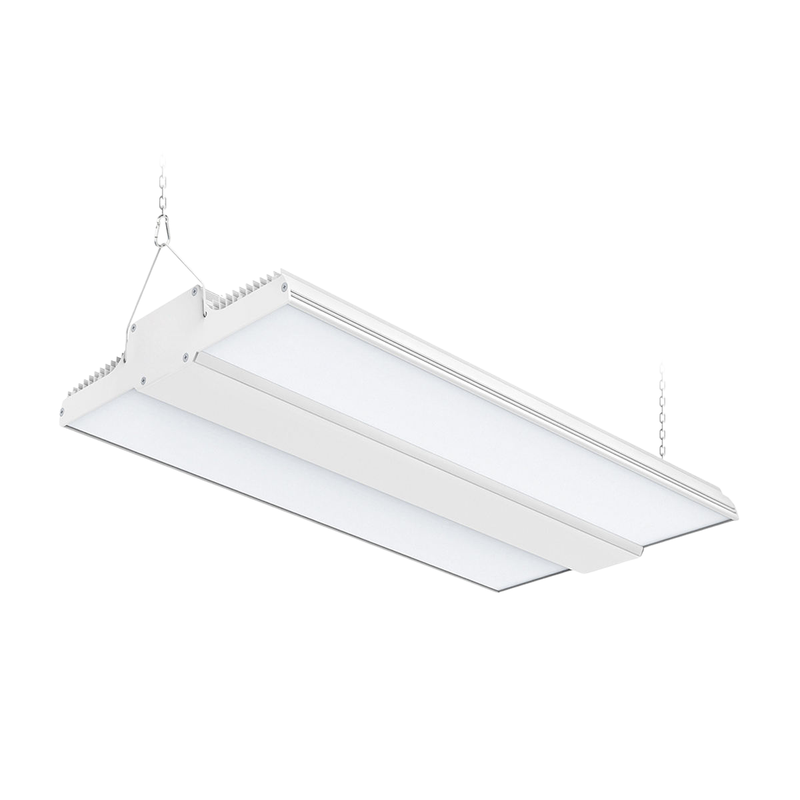

MH5003 – Contractor Direct Lighting LED Linear High Bay Light

Commercial & Industrial LED Linear High Bay Light for Warehouses, Factories, Distribution Centers, Manufacturing Plants, Retail Spaces, and Gymnasiums

Product Overview

The MH5003 – Contractor Direct Lighting LED Linear High Bay Light is a high-performance commercial and industrial lighting solution designed for factories, warehouses, packaging and distribution facilities, manufacturing plants, retail spaces, gymnasiums, and other large high-ceiling spaces. Built for demanding environments, this LED linear high bay fixture delivers bright, efficient, and reliable illumination with selectable wattage, selectable color temperature, and long-lasting commercial-grade construction.

This Contractor Direct Lighting linear high bay light is offered in 2FT and 4FT sizes and aligns with the LHB2 Series configuration. Available model families include 110W 2FT, 160W 2FT, 220W 2FT, 220W 4FT, and 300W 4FT, with 3500K / 4000K / 5000K selectable color temperature, 0–10V dimming, and AC 120–277V input voltage. It is built for customers searching for linear high bay lighting, warehouse LED lighting, industrial high bay fixtures, and commercial LED ceiling lights.

Key Features

Selectable Wattage for Flexible Performance

The MH5003 – Contractor Direct Lighting LED Linear High Bay Light includes these model families:

110W 2FT
160W 2FT
220W 2FT
220W 4FT
300W 4FT

The ordering guide also shows adjustable wattage by family:

110 / 90 / 70W
160 / 140 / 120W
220 / 190 / 160W
300 / 260 / 220W

This flexibility helps contractors and facility managers match brightness levels to mounting height, layout, and energy-saving requirements.

Selectable Color Temperature

This Contractor Direct Lighting high bay light features 3500K / 4000K / 5000K selectable CCT, giving users better control over the lighting environment for industrial facilities, warehouses, retail applications, and gym lighting.

High Lumen Output

The fixture supports these maximum lumen outputs:

15,400 lumens @ 110W
22,400 lumens @ 160W
30,800 lumens @ 220W
42,000 lumens @ 300W

These outputs make the fixture ideal for LED warehouse lighting, factory high bay lighting, distribution center lighting, and large indoor commercial spaces that require strong, even light coverage.

0–10V Dimming

The MH5003 – Contractor Direct Lighting LED Linear High Bay Light supports 0–10V dimming, helping improve lighting control and reduce energy usage in commercial and industrial installations.

Commercial Voltage Range

This fixture operates on AC 120–277V, making it suitable for a wide range of commercial and industrial electrical systems.

Durable Construction

The fixture includes:

White finish
Aluminum heatsink for efficient heat dissipation
Frosted or prismatic PMMA lens, depending on model

These features support durability, thermal performance, and smooth light distribution in demanding applications.

Long Operating Life

The LHB2 Series is listed with lumen maintenance over 70% at 50,000+ hours, helping reduce maintenance and replacement frequency over time.

Beam Angle and Environment

The product is listed with:

110° beam angle
IP20 rating
Suitable for damp locations
Operating temperature: -40°F to 122°F / -40°C to 50°C

These specs make it suitable for many indoor commercial and industrial high-bay applications.

Accessory Options

Included accessories:

Hook
Chain

Optional accessories:

Motion sensor
Emergency driver

The installation setup supports hook-and-chain suspension and microwave sensor installation options.

Applications

The MH5003 – Contractor Direct Lighting LED Linear High Bay Light is ideal for:

Factories
Warehouses
Packaging and distribution facilities
Manufacturing plants
Retail spaces
Gymnasiums
Other large high-ceiling spaces

Product Specifications

Brand: Contractor Direct Lighting
Item Code: MH5003
Product Name: Contractor Direct Lighting LED Linear High Bay Light
Series: LHB2 Series
Fixture Type: LED Linear High Bay Light
Available Configurations: 110W 2FT, 160W 2FT, 220W 2FT, 220W 4FT, 300W 4FT
Selectable Wattage: 110 / 90 / 70W, 160 / 140 / 120W, 220 / 190 / 160W, 300 / 260 / 220W
Color Temperature: 3500K / 4000K / 5000K selectable
CRI: >80
Power Factor: ≥0.9
Input Voltage: AC 120–277V
Dimming: 0–10V dimmable
Beam Angle: 110°
Operating Temperature: -40°F to 122°F / -40°C to 50°C
Rating: IP20, suitable for damp locations
Finish: White
Lens: Frosted or prismatic PMMA lens, depending on model

Dimensions

2FT Models

Length: 23.81 in / 605 mm
Width: 12.6 in / 320 mm
Depth: 2.05 in / 52 mm

4FT Models

Length: 45.87 in / 1165 mm
Width: 12.6 in / 320 mm
Depth: 2.05 in / 52 mm

Package Dimensions

2FT Package Size

660 × 185 × 393 mm
25.98 × 7.28 × 15.47 in

4FT Package Size

1200 × 185 × 393 mm
47.24 × 7.28 × 15.47 in

Package Weight

2FT Models: 7.28 kg / 16.05 lbs
4FT Models: 11.2 kg / 24.6 lbs

Why Choose the MH5003 – Contractor Direct Lighting LED Linear High Bay Light

The MH5003 – Contractor Direct Lighting LED Linear High Bay Light is a strong choice for customers searching for LED linear high bay lights, commercial high bay lighting, industrial high bay fixtures, warehouse linear high bay lights, factory LED high bays, 2FT linear high bay lights, 4FT linear high bay lights, selectable CCT high bay fixtures, 0–10V dimmable high bay lights, and damp location high bay lighting.

Its combination of multiple wattage options, high lumen output, selectable color temperature, 0–10V dimming, commercial voltage compatibility, and durable aluminum heatsink construction makes it a strong fit for demanding high-ceiling commercial and industrial applications.
