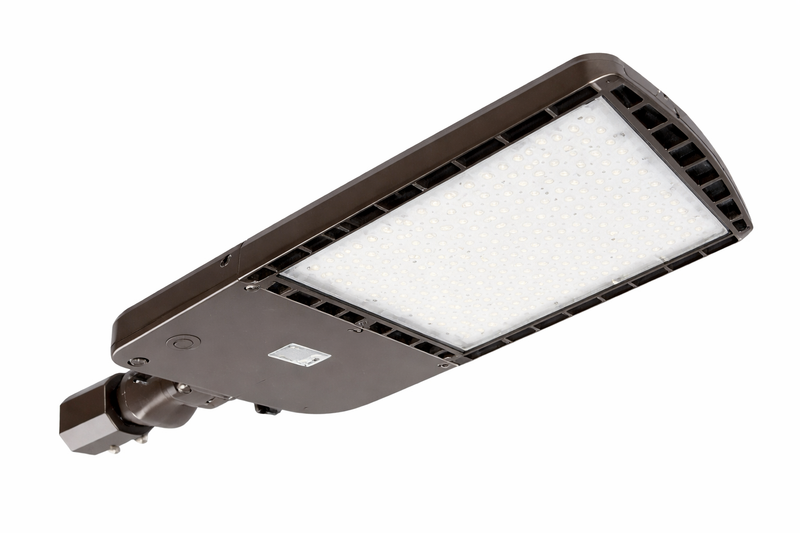

AL1100 – Contractor Direct Lighting LED Area / Shoebox Light

Commercial LED Shoebox Light for Parking Lots, Building Facades, Storage Yards, Parks, and Outdoor Site Lighting

Product Overview

The AL1100 – Contractor Direct Lighting LED Area / Shoebox Light is a rugged outdoor lighting solution designed for commercial and industrial site lighting, including parking lots, buildings, building facades, storage yards, parks, and other large-area applications. Built for strong illumination, long-term durability, and energy-efficient performance, this Contractor Direct Lighting shoebox light is a dependable option for outdoor commercial lighting environments.

This fixture is part of the AL02 Series and is offered in three wattage-adjustable families: 70W / 100W / 150W, 100W / 150W / 200W, and 200W / 240W / 300W. The uploaded spec sheet confirms 0–10V dimming, Type III light distribution, and 140–150 lumens per watt efficacy. It also lists maximum lumen outputs of 22,007 lumens, 26,947 lumens, 44,288 lumens, and 43,453 lumens, depending on the model and voltage family.

Key Features

High-Output Outdoor Area Lighting

The AL1100 – Contractor Direct Lighting LED Area / Shoebox Light is engineered for large outdoor spaces that require strong, uniform illumination, including parking areas, building exteriors, storage yards, and site-lighting zones.

Multiple Wattage Families

The product sheet lists these wattage-adjustable families:

70W / 100W / 150W
100W / 150W / 200W
200W / 240W / 300W

This gives the Contractor Direct Lighting LED shoebox light flexibility for different mounting heights and site-lighting requirements.

Selectable and Fixed Color Temperature Options

The uploaded sheet shows:

5000K for the listed 150W and 200W families
3000K / 4000K / 5000K selectable for the listed 300W families

Because the source line requested 3000K / 4000K / 5000K, the most accurate wording is that selectable CCT applies to the 300W family shown on the sheet, while the other listed families are 5000K in the provided document.

High Efficacy Performance

The product sheet lists:

150 lm/W for the 150W family
140 lm/W for the 200W family
150 lm/W for the 300W family

That makes this Contractor Direct Lighting LED area light suitable for energy-efficient outdoor site-lighting upgrades.

Verified Maximum Lumen Output

The sheet lists the following maximum outputs:

22,007 lumens max for the 150W family
26,947 lumens max for the 200W family
44,288 lumens max for the 300W AC120–277V family
43,453 lumens max for the 300W AC277–480V family

These outputs make the fixture a strong option for customers searching for parking lot LED lights, commercial site lights, and high-output shoebox lights.

Type III Light Distribution

The product sheet lists Type III lighting distribution, which is commonly used for roadway edges, parking lots, and area lighting where forward throw and broad lateral distribution are needed.

Smart-Control Compatibility

The source states the fixture works with:

Photocell
PIR motion sensor

The accessories section also lists:

PC: Photocell Control
MS: PIR Motion Sensor

This makes the Contractor Direct Lighting shoebox light more adaptable for energy-saving outdoor lighting controls.

0–10V Dimming

The sheet confirms 0–10V dimming across the listed models. The installation page also shows DIM+ and DIM− wiring.

Durable Aluminum Housing

The product sheet highlights:

Durable aluminum housing
Optimized heat dissipation
Easy maintenance
LED junction under 185°F

These features support long-term commercial performance and improved thermal management.

Surge Protection and Wet-Location Rating

The uploaded sheet lists:

6kV surge protection
Wet Locations (IP65)

This supports reliable use in outdoor commercial applications exposed to changing weather conditions.

Flexible Mounting Options

The sheet shows four mounting styles:

Slip Fitter
Arm / Fixed Arm Bracket
Trunnion
Universal Adjustable Arm with Pole Hole

This provides more installation flexibility for different site-lighting layouts.

Rotatable Lens

The product sheet states the fixture has a rotatable lens, and the instruction page notes the Type III lens rotates 90° clockwise or counterclockwise.

Applications

The AL1100 – Contractor Direct Lighting LED Area / Shoebox Light is ideal for:

Parking lots
Buildings
Building facades
Storage yards
Parks
Commercial outdoor lighting
Industrial outdoor lighting

Product Specifications

Brand: Contractor Direct Lighting
Item Code: AL1100
Product Name: Contractor Direct Lighting LED Area / Shoebox Light
Series: AL02 Series
Fixture Type: LED Shoebox / Area Light

Model Families

HYA-AL02-150W-H3-50K-TW
HYA-AL02-200W-H3-50K-TW
HYA-AL02-300W-H3-TWCCT
HYA-AL02-300W-H3-HV-TWCCT

Wattage

70W / 100W / 150W
100W / 150W / 200W
200W / 240W / 300W

Input Voltage

AC120–277V
AC277–480V on the HV 300W family

Color Temperature

5000K on the listed 150W and 200W families
3000K / 4000K / 5000K selectable on the listed 300W families

Maximum Lumen Output

22,007 lm max
26,947 lm max
44,288 lm max
43,453 lm max

Lighting Efficiency

150 lm/W
140 lm/W
150 lm/W

Lighting Distribution: Type III
Dimming: 0–10V dimmable
CRI: Ra > 80
Power Factor: > 0.9
Working Temperature: ~ -40°F to +113°F / ~ -40°C to +45°C
Environment: Wet Locations (IP65)
Life Span: Lumen maintenance over 70% @ 50,000+ hours with 5-year limited warranty
Finish: Dark Bronze

Accessories / Options

PC: Photocell Control
MS: PIR Motion Sensor

Mounting Options

Slip Fitter
Arm Mount
Trunnion
Universal Mount

Dimensions

150W Family Dimensions

Fixture Body

404 mm / 15.9" overall length
361 mm / 14.2" body section
250 mm / 9.8" height
65 mm / 2.6" profile depth

With Slip Fitter

597 mm / 23.5" overall length
79 mm / 3.1" fitter section height

With Arm Mount

532 mm / 21.0" overall length
162 mm / 6.4" arm drop shown on side view

With Trunnion

552 mm / 21.7" overall length

With Universal Mount

603 mm / 23.7" overall length
162 mm / 6.4" mount depth shown on side view

200W Family Dimensions

Fixture Body

461 mm / 18.2" overall length
418 mm / 16.4" body section
288 mm / 11.3" height
65 mm / 2.5" profile depth

With Slip Fitter

654 mm / 25.7" overall length
79 mm / 3.1" fitter section height

With Arm Mount

589 mm / 23.2" overall length
162 mm / 6.4" arm drop shown on side view

With Trunnion

609 mm / 24.0" overall length

With Universal Mount

660 mm / 26.0" overall length
162 mm / 6.4" mount depth shown on side view

300W Family Dimensions

Fixture Body

576 mm / 22.7" overall length
535 mm / 21.0" body section
338 mm / 13.3" height
71 mm / 2.8" profile depth

With Slip Fitter

768 mm / 30.2" overall length
79 mm / 3.1" fitter section height

With Arm Mount

704 mm / 27.7" overall length
162 mm / 6.4" arm drop shown on side view

With Trunnion

724 mm / 28.5" overall length

With Universal Mount

775 mm / 30.5" overall length
162 mm / 6.4" mount depth shown on side view

Effective Projected Area

150W

Slip Fitter: 1.39 ft²
Arm Mount: 1.29 ft²
Trunnion: 1.28 ft²
Universal Mount: 1.39 ft²

200W

Slip Fitter: 1.89 ft²
Arm Mount: 1.79 ft²
Trunnion: 1.78 ft²
Universal Mount: 1.89 ft²

300W

Slip Fitter: 2.69 ft²
Arm Mount: 2.59 ft²
Trunnion: 2.58 ft²
Universal Mount: 2.69 ft²

Best Search Terms

LED area light, LED shoebox light, parking lot light, commercial site light, outdoor area light, Type III area light, IP65 shoebox light, photocell-ready area light, Contractor Direct Lighting area light, AL1100 shoebox light

Why Choose the AL1100 – Contractor Direct Lighting LED Area / Shoebox Light

The AL1100 – Contractor Direct Lighting LED Area / Shoebox Light is a strong option for customers looking for a high-output, energy-efficient, and commercial-grade outdoor site light. With multiple wattage families, Type III distribution, IP65 wet-location protection, 0–10V dimming, photocell and PIR sensor compatibility, and multiple mounting options, it is well suited for parking lots, facades, storage yards, and other demanding commercial outdoor lighting projects.
