PL5007 – Contractor Direct Lighting LED Frame Light

Slim Commercial LED Frame Light for Offices, Schools, Conference Rooms, Hospitals, and Interior Commercial Spaces

Product Overview

The PL5007 – Contractor Direct Lighting LED Frame Light is a slim, modern commercial lighting solution designed to provide even, flicker-free, and energy-efficient illumination in professional interior spaces. Ideal for offices, schools, conference rooms, hospitals, and other commercial environments, this Contractor Direct Lighting LED frame light combines a low-profile architectural look with flexible performance features for clean and dependable ceiling lighting.

This Contractor Direct Lighting LED Frame Light aligns with the PE Series LED Frame Light platform, which is available in 1x4, 2x2, and 2x4 sizes and supports 0–10V dimming, 120–277 VAC input, and 3000K / 4000K / 5000K selectable color temperature.

The fixture also supports up to 50% energy savings compared to traditional fluorescent fixtures, making it a strong option for commercial lighting retrofits, office ceiling upgrades, and new-build interior lighting projects.

Key Features

Even, Flicker-Free Light Distribution

The PL5007 – Contractor Direct Lighting LED Frame Light is built to deliver smooth, even illumination for interior commercial spaces. Its flicker-free light output makes it well suited for workspaces and environments where visual comfort matters.

Selectable Wattage

The fixture includes the following wattage configurations by size:

1x4 Model: 20W / 30W / 40W
2x2 Model: 20W / 30W / 40W
2x4 Model: 30W / 40W / 50W

These wattage options give contractors and facility managers flexibility when balancing brightness, efficiency, and application requirements.

Selectable Color Temperature

This Contractor Direct Lighting frame light offers 3CCT selectable color temperature:

3000K / 4000K / 5000K

These options help tailor the lighting environment for offices, conference rooms, schools, hospitals, and other professional interiors.

0–10V Dimming

The fixture supports 0–10V dimming, helping improve brightness control and reduce energy usage in commercial spaces.

High-Efficiency Performance

The fixture delivers 130 lm/W efficacy, supporting efficient light output while lowering energy consumption compared to older fluorescent systems.

Up to 50% Energy Savings

The Contractor Direct Lighting PL5007 LED Frame Light can save up to 50% energy usage compared to traditional fluorescent fixtures, making it a smart choice for customers looking for efficient commercial ceiling lighting.

Commercial Voltage Range

This Contractor Direct Lighting LED Frame Light operates on 120–277 VAC, supporting use across a wide range of commercial electrical systems.

Slim Profile Design

The PE Series is designed with a slim profile, external driver box, and slide-switch wattage and CCT selection. This makes it suitable for clean commercial interiors where a low-profile appearance is important.

Long Operating Life

The fixture is listed with lumen maintenance over 70% at 50,000+ hours and a 5-year limited warranty, helping reduce maintenance and replacement frequency over time.

Indoor Commercial Use

The fixture is rated IP40 – Indoor Only, with a working temperature range of -4°F to +105°F / -15°C to +40°C.

Applications

The PL5007 – Contractor Direct Lighting LED Frame Light is ideal for:

Offices
Schools
Conference rooms
Hospitals
Commercial interior spaces

Product Specifications

Brand: Contractor Direct Lighting
Item Code: PL5007
Product Name: Contractor Direct Lighting LED Frame Light
Fixture Type: LED Frame Light
Series: PE Series
Available Sizes: 1x4, 2x2, 2x4

Wattage

1x4: 20W / 30W / 40W
2x2: 20W / 30W / 40W
2x4: 30W / 40W / 50W

Color Temperature: 3000K / 4000K / 5000K selectable
Input Voltage: 120–277 VAC
Dimming: 0–10V dimmable
Lumens: 1x4: 5,200 lumens | 2x2: 5,200 lumens | 2x4: 6,500 lumens
Efficacy: 130 lm/W
Beam Angle: 120°
CRI: Ra > 80
Power Factor: 0.95
Working Temperature: -4°F to +105°F / -15°C to +40°C
Storage Temperature: -4°F to +105°F / -15°C to +40°C
Protection Rating: IP40 – Indoor Only
Life: Lumen maintenance over 70% at 50,000+ hours
Warranty: 5 Years Limited
Construction: Aluminum body with PC cover

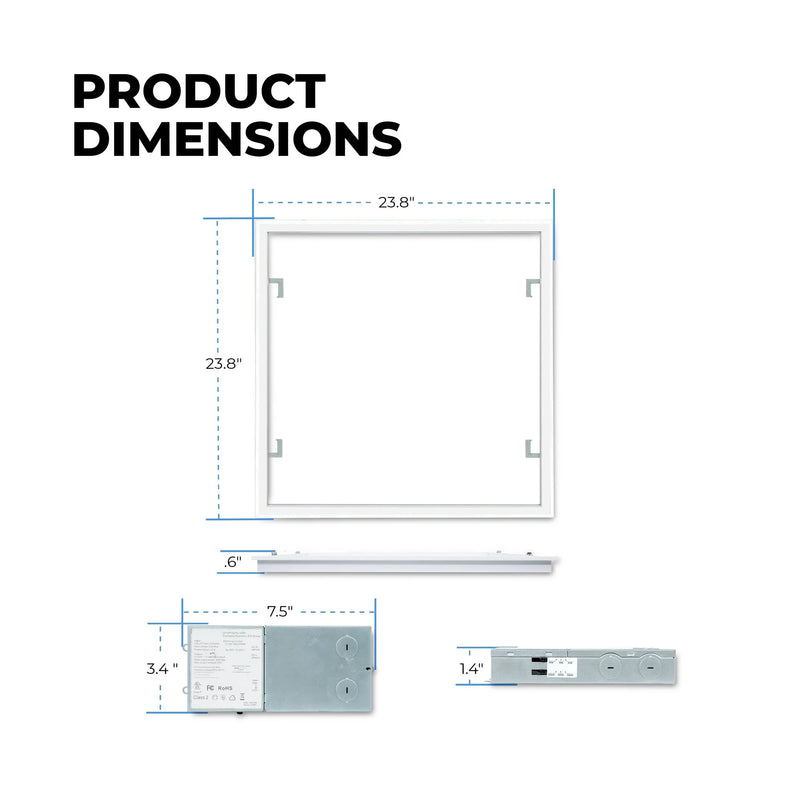

Dimensions

Fixture Dimensions

1x4:
23.74 in × 11.22 in × 0.63 in
603 mm × 285 mm × 16 mm

2x2:
23.03 in × 23.03 in × 0.63 in
585 mm × 585 mm × 16 mm

2x4:
47.76 in × 11.93 in × 0.63 in
1213 mm × 303 mm × 16 mm

Internal Size

1x4: 47.05 in / 1195 mm internal size
2x2: 23.03 in / 585 mm internal size
2x4: 47.05 in / 1195 mm internal size

Package Dimensions

1x4 Package: 49.8 in × 2.36 in × 14.2 in
2x2 Package: 25.8 in × 2.36 in × 26 in
2x4 Package: 49.82 in × 2.36 in × 26 in

Package Weight

1x4: 6.5 lbs
2x2: 5.7 lbs
2x4: 8.4 lbs

Pieces per Master Pack: 2 pcs for each listed size

Best Search Terms

LED frame light, commercial LED frame light, slim LED frame light, office ceiling frame light, school LED frame light, conference room ceiling light, hospital LED ceiling light, 1x4 LED frame light, 2x2 LED frame light, 2x4 LED frame light, 0–10V dimmable frame light, 3000K 4000K 5000K selectable light, energy-saving commercial panel light, PE Series LED frame light, Contractor Direct Lighting LED frame light

Why Choose the PL5007 – Contractor Direct Lighting LED Frame Light

The PL5007 – Contractor Direct Lighting LED Frame Light is a strong choice for customers seeking a slim, modern, and energy-efficient commercial ceiling light.

With flicker-free illumination, selectable wattage, selectable color temperature, 0–10V dimming, and a low-profile aluminum body, it is well suited for interior lighting upgrades in offices, schools, conference rooms, hospitals, and other professional commercial environments.
